Fathom | Surfskate Edition

UNLEASHING DISTANCE SURFSKATE.

Coming from a long running friendship with . Loaded has been experimenting with surfskate truck technology for years.

Now. pushing the boundary of what defines a surfskate. the Loaded Fathom and Tangent Surfskate Editions are a unique marriage of surfskate agility and longboard flow. Pairing the revolutionary Zee Bracket system with Carver trucks and big wheels has opened up surfskate truck performance on a double-drop board for the first time.

The Fathom Surfskate Edition is nimble and pumpable while also maintaining a comfortable low ride height that makes this board a pioneer in a new category of skateboarding that we like to call distance surfskate.

IT’S RIGHT FOR YOU IF??

• You have been surfskate-curious but are drawn to a more stable. roomy platform that instills greater confidence than a typical surfskate setup.
• You love surfskating and want to be able to use large wheels to skate longer distances with ease and to not worry about cracks or road debris.
• You want to try distance surfskating on a board that is compact. nimble. and low with quick acceleration.
• You want an easy-to-ride board that strikes a beginner-friendly balance between stability and maneuverability for an accessible surfskate experience.

Looking for a longer platform and an even lower ride height? Check out the !

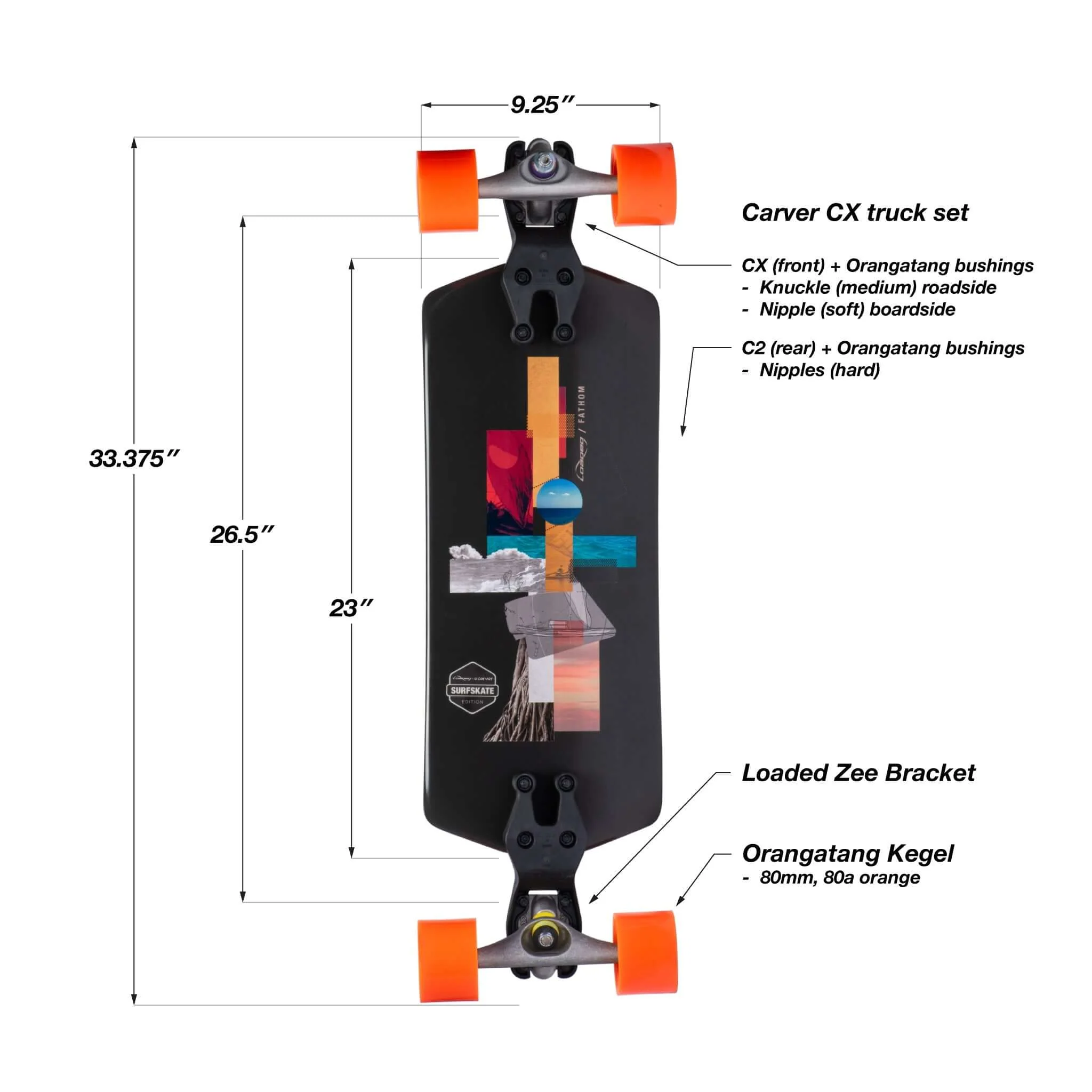

LONGBOARD SPECS

• Length: 33.375?? / 84.8 cm (CX). 23?? / 58.4 cm (deck)
• Width: 9.25?? / 23.5 cm
• Wheelbase: 26.5?? / 67.3 cm (complete). 17.25?? / 43.8 cm (deck)
• Profile: slight camber
• Flex: subtle
• Weight: 8.1 lb / 3.7 kg (CX). 3.1 lb / 1.4 kg (deck)
• Designed for riders up to 250 lb / 113 kg under normal use. Riders 250-300 lb / 113-136 kg should minimize aggressive pumping.

COMPLETE SETUP

• Deck: Loaded Fathom
• Bracket: Loaded Zee Bracket
• Trucks: Carver CX (front) + C2 (rear)
• Bushings: Orangatang Knuckle (medium/purple. front. roadside) + Nipple (soft/orange. front. boardside) + Nipples (hard/yellow. rear)
• Washers: standard Paris-style cupped washers (top and bottom)
• Wheels: Orangatang 80mm Kegel (80a. orange)
• Bearings: Loaded Jehu V2
• Hardware: Loaded (two sets: 1.25?? at deck. 1?? at trucks)
